Submersible Solar power water pump

FOB Reference Price:Get Latest Price
US $180-600 / Set | 10 Set/Sets (Min. Order)
Supply Ability:
3000 Piece/Pieces per Week
Port:
Shanghai Port
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
THE -Solar
Model Number:
3Z3-80-1.5
Structure:
Single-stage Pump
Usage:
home use
Power:
1.88kw
Standard or Nonstandard:
Standard
Fuel:
solar power
Pressure:
High Pressure
Application:
Irrigation
Work Voltage:
DC 220V
Rated Flow:
3 Ton/hour
Max Flow:
6 Ton/hour
Rated Head:
80m
Max Head:
120m
Motor:
DC Brushless Motor
Outlet:
32mm
Bearing:
Japan NSK Bearing
Material:
Stainless Steel
Weight:
5.3kg
Packaging & Delivery
Packaging Details
Pump unit in one carton, controller in one carton
Packing Size: 120*120*580mm
Delivery Time
15-20 days after receive the payment

                                            Submersible Solar power water pump

Product characteristic



  • High Efficiency and high-speed Stepless Speed Regulation Motor
  • Small Voltage(1/4) and Light Weight(1/3)
  • Automatic Working Model
  • Pressure and Flow Control Model
  • Timer Switch
  • Downwhole Waterless Automatic Control
  • Multifunctional Automatic Protection
  • Used Both at 50HZ and 60HZ
  • Wide Voltage Constant Output
  • Network Single control or Multi-Devices Control
  • AC,DC and Solar Power Input





TYPE

FLOW

Rated/Max

(Ton/hour)

HEAD

Rated/Max

(Meter)

PUMP

POWER

(KW)

SOLAR

POWER

(KW)

PUMP

VOLTAGE

(Vol)

MOTOR

SPEED

(r/min)

PUMP

HEIGHT

(mm)

PUMP

WEIGHT

(Kg)

PUMP

OUTLET

(mm)

PUMP

DIAMETER

(mm)

PACKING

SIZE

(mm)

3Z2-50-0.75

2/5

50/70

1.0

1.5

220V

7200

430

5.0

32

75

120*120*520

3Z2-65-1.1

2/5

65/80

1.4

2.1

220V

7200

440

5.1

32

75

120*120*520

3Z3-50-1.1

3/5

50/80

1.4

2.1

220V

7200

440

5.1

32

75

120*120*580

3Z2-100-1.5

2/6

100/120

1.88

2.8

220V

7200

460

5.3

32

75

120*120*580

3Z3-80-1.5

3/6

80/120

1.88

2.8

220V

7200

460

5.3

32

75

120*120*580

3Z2-120-2.2

2/6

120/145

2.7

4.0

220/380V

7200

530

6.5

32

75

120*120*580

3Z3-100-2.2

3/6

100/148

2.7

4.0

220/380V

7200

530

6.5

32

75

120*120*650

3Z2-200-3

2/6

200/240

3.62

5.4

220/380V

7200

630

7.5

32

75

120*120*730

3Z3-175-3

3/6

175/230

3.62

5.4

220/380V

7200

630

7.5

32

75

120*120*730

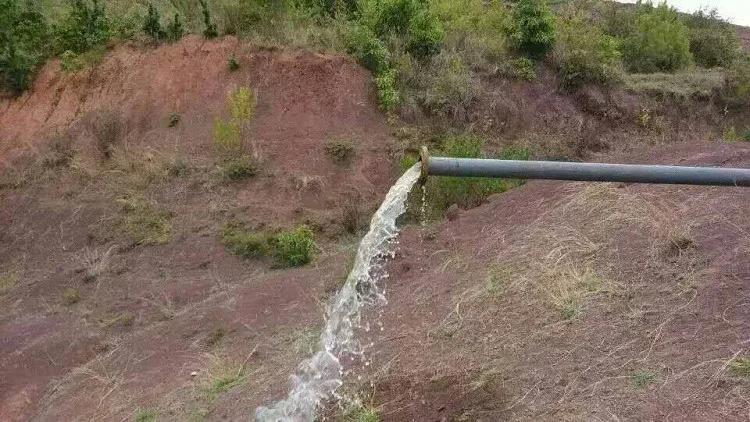

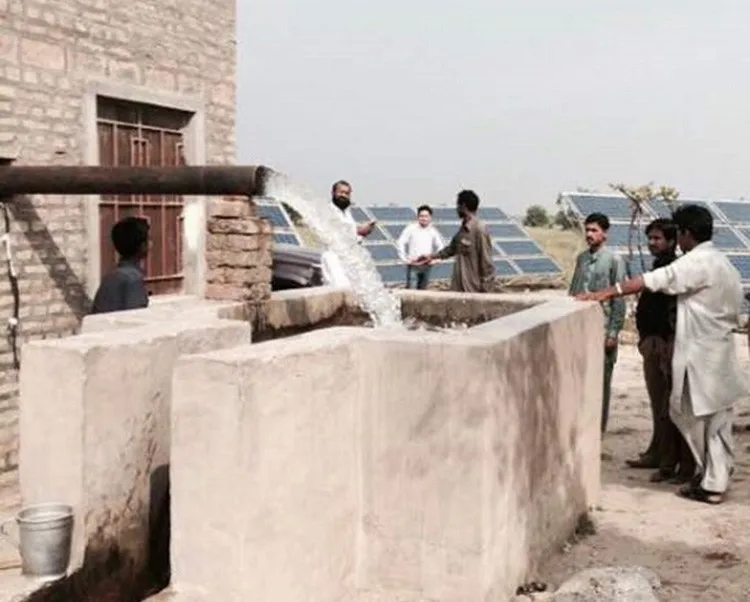

Solar water pump system appliction:

  • Pasture irrigation
  • Desertification control
  • Fountain
  • Domestic water
  • Agriculture irrigation
  • Desalination of sea water
  • Drinking water
  • Dripping irrigation.
