Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: THE -Solar
  • Model Number: 3Z2-50-0.75
  • Structure: Single-stage Pump
  • Usage: irrigation
  • Power: 1kw
  • Standard or Nonstandard: Standard
  • Fuel: Solar power
  • Pressure: High Pressure
  • Application: home use
  • Work Voltage: DC 220V
  • Rated Flow: 2 ton/hour
  • Max flow: 5 Ton/hour
  • Rated Head: 50m
  • Max head: 70m
  • Outlet: 32mm
  • Material: Stainless Steel
  • Bearing: Janpan NSK Bearing
  • Motor: permanent-magnet synchronous motor
  • Warranty: 2 Years

Packaging & Delivery

Packaging Details: Pump unit in one carton, controller in one carton
Packing Size: 120*120*520mm
Delivery Detail: 15-20 days after receive the payment



Product characteristic

  • High Efficiency and high-speed Stepless Speed Regulation Motor
  • Small Voltage(1/4) and Light Weight(1/3)
  • Automatic Working Model
  • Pressure and Flow Control Model
  • Timer Switch
  • Downwhole Waterless Automatic Control
  • Multifunctional Automatic Protection
  • Used Both at 50HZ and 60HZ
  • Wide Voltage Constant Output
  • Network Single control or Multi-Devices Control
  • AC,DC and Solar Power Input


TYPE

FLOW

Rated/Max

(Ton/hour)

HEAD

Rated/Max

(Meter)

PUMP

POWER

(KW)

SOLAR

POWER

(KW)

PUMP

VOLTAGE

(Vol)

MOTOR

SPEED

(r/min)

PUMP

HEIGHT

(mm)

PUMP

WEIGHT

(Kg)

PUMP

OUTLET

(mm)

PUMP

DIAMETER

(mm)

PACKING

SIZE

(mm)

3Z2-50-0.75

2/5

50/70

1.0

1.5

220V

7200

430

5.0

32

75

120*120*520

3Z2-65-1.1

2/5

65/80

1.4

2.1

220V

7200

440

5.1

32

75

120*120*520

3Z3-50-1.1

3/5

50/80

1.4

2.1

220V

7200

440

5.1

32

75

120*120*580

3Z2-100-1.5

2/6

100/120

1.88

2.8

220V

7200

460

5.3

32

75

120*120*580

3Z3-80-1.5

3/6

80/120

1.88

2.8

220V

7200

460

5.3

32

75

120*120*580

3Z2-120-2.2

2/6

120/145

2.7

4.0

220/380V

7200

530

6.5

32

75

120*120*580

3Z3-100-2.2

3/6

100/148

2.7

4.0

220/380V

7200

530

6.5

32

75

120*120*650

3Z2-200-3

2/6

200/240

3.62

5.4

220/380V

7200

630

7.5

32

75

120*120*730

3Z3-175-3

3/6

175/230

3.62

5.4

220/380V

7200

630

7.5

32

75

120*120*730

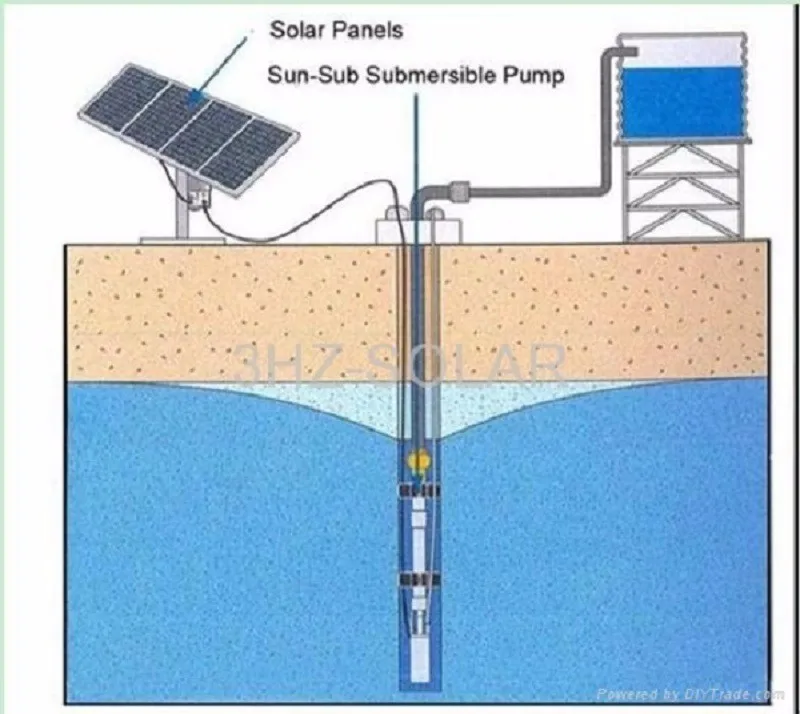

DC solar water pump system appliction:

  • Pasture irrigation
  • Desertification control
  • Fountain
  • Domestic water
  • Agriculture irrigation
  • Desalination of sea water
  • Drinking water
  • Dripping irrigation.
