Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: THE SOLAR
  • Model Number: THE-10kw
  • Specification: Normal
  • Application: Home, TV,Light,Refrigerator,pump
  • Output Voltage (V): 12/24/48/220
  • Load Power (W): 20000w
  • Solar Power (W): 10000w
  • Work Time (h): 8
  • Region: Power shortage area
  • Usage: Easy install
  • Power: solar power system
  • Charge time: 6 hours on the day
  • Use time: at least 10 hours
  • Type: off-grid
  • Efficiency: high efficiency
  • Output: Ac output
  • Packing: Carton with Pallets

Packaging & Delivery

Packaging Details: carton with pallets
Delivery Detail: Normally only need 10 working days

  10kw solar panel system for home



  • High Module Conversion Effiiency
  • Fast and inexpensive mounting
  • 100% EL testing on every modules
  • Guarantee positive output tolerance ( 0+3% )
  • Withstand high wind and Snow Loads
  • Excellent performance in low light environments

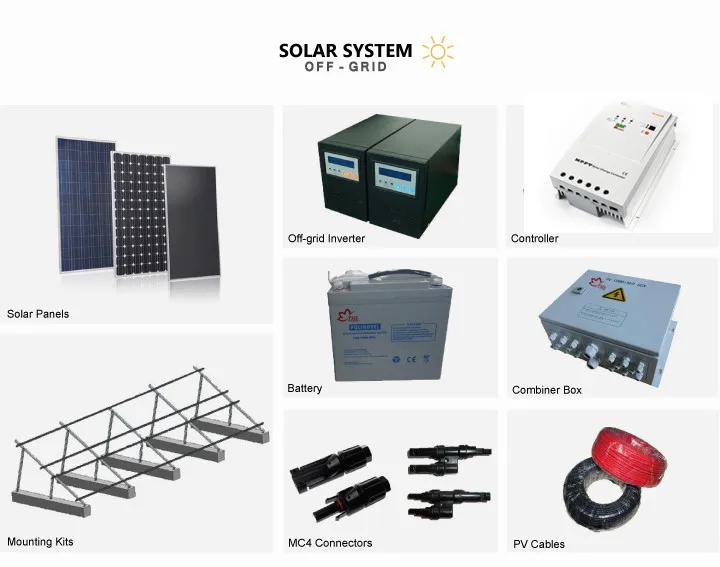

Off-Grid Solar Power Supply System Quotation             Ref No.: THE-OFF-SP-10KW

System Basic

Information:



Solar Panel Rated Output Power:      10KW

Suitable for Daily Power Consumption:  <32KWH

Allowable Max Loads Power:          10KW

Solar Panel

CellType: polycrystalline  (mono optional) Max Power:250W

Vmp:30.6V Imp:8.17A

Size:1650*990*45mm

Weight: 19.5kg/pc

25yearspoweroutput guarantee

(CE,ROHS,IECcertified)







QTY:







40 pcs

PV Array Combiner

Simplify wiring between PV array and controller, protections to controller

features:

- Wide range of DC input voltage

- IP65 guard level, suitable for outdoor

-Reliable thunderstorm & surge protection

Service time: 10 years; Warranty: 2 years







QTY:







1 pc

Controller

220V/50A,

PWM charging mode, intelligent control, complete LCD display;

Temperature compensation, various protection functions.

Warranty: 2 years





QTY:





1 pc

 Inverter

 DC220V/AC220V,

Rated Output Power:10KW

True sine-wave, off-grid with MPPT automatic power tracking, high inverting efficiency up to 90%;various protections.

Warranty:2years







 QTY:







 1 pc

Battery

2V/400AH per piece

Solar power lead-acid battery, fully sealed, deep cycle, free maintenance type

Service Life: 6~7 years; Warranty: 2

years





QTY:





110 pcs

Solar Panel Rack

Flat-rooftypemountingrack,

Aluminummaterial,includingwhole pack Nowelding/cuttingatsite, easymounting

Moroptions tselect:

Slope-Roof MountingRack;

ArrayTypeRack;

Standing-PoleTypeRack;





QTY:





1 set

Cables

International standard, with specification suitable for solar system, RVV series



QTY:



200m
